| 产品特性：详询 | 品牌：康普 | 型号：CS41Z1 |
| 传输速率：详询Kpbs | 抗拉强度：详询N | 使用温度：详询℃ |
| 储存温度：详询℃ | 抗压强度：详询 | 适用范围：综合布线 |

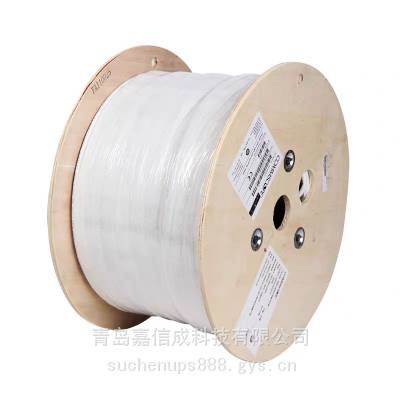

康普超六类非屏蔽网线884050804/10 | CS41Z1 WHT C6A 4/23 U/UTP RL 305M
General Specifications
| Product Number | CS41Z1 |
| ANSI/TIA Category | 6A |
| Cable Component Type | Horizontal |
| Cable Type | U/UTP (unshielded) |
| Conductor Type, singles | Solid |
| Conductors, quantity | 8 |
| Jacket Color | White |
| Pairs, quantity | 4 |
| Separator Type | ***lator |
| Transmission Standards | ANSI/TIA-568.2-D | IEC 61156-5 |
Dimensions
| Cable Length | 304.8 m | 1000 ft |
| Diameter Over Insulated Conductor | 1.113 mm | 0.0438 in |
| Diameter Over Jacket, nominal | 7.087 mm | 0.279 in |
| Jacket Thickness | 0.508 mm | 0.02 in |
| Conductor Gauge, singles | 23 AWG |
